Single phase Static Stabilizer (1 phase)

Single Phase Static Stabilizer between 5kVA -10 kva

Single Phase Static Stabilizer

Single phase static stabilizer are one of the methods used to solve imbalances in network voltage. Microprocessor controlled. Due to its thyristor structure, correction speed is very high.Artsan Single phase static stabilizer is microprocessor controlled and does not contain mechanical parts. Therefore, there is no possibility of breakdown due to wear. It has long life.Monophase static regulators offer 10-20% efficiency advantage in idle working conditions compared to a quality servo regulator and 30% efficiency compared to poor quality servo regulators. It pays the price difference between servo regulator with 1 year saving.On the 2 × 16 LCD screen, information on operating status and past faults can be monitored. Depending on the application, there are models with output sockets.It is light and small in size. For example; while the servo stabilizer to be used for the houses are 29 kg and 55x40x30 cm, the static stabilizer with the same power weighs 15kg and has the sizes of 24x25x32 cm. In this way, the problem of searching for a place for the regulator in houses and offices has been removed.In addition, it can be carried easily with the carrying handle. With this feature, it offers great advantages for mobile applications (musicians, welders etc.).It is an ideal solution especially for home, villa and small office users because of its quiet operation, economic advantages and light and small size.

Monophase Static Regulator Product Gallery

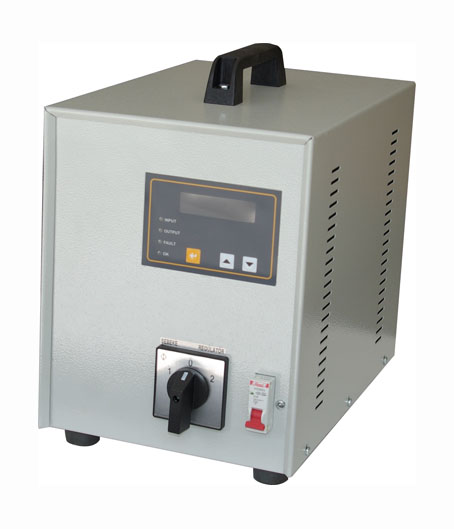

  • Statik Regülatör - (Ofisler için , 5-10 kVA)-12x14

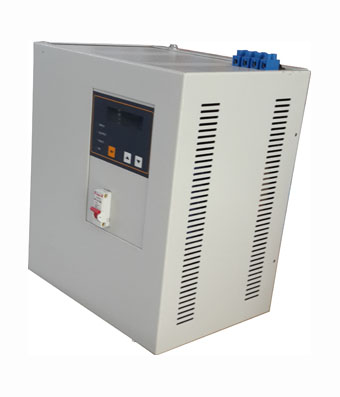

  • Statik Regülatör (Konutlar için - 10 kVA)-12x14
  • Statik Regülatör (Monofaze 30 kVA)-12x14
  • Statik Regülatör (Müzik Sistemleri için 10 kVA)-12x14

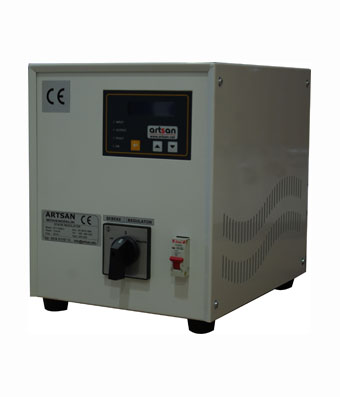

  • Statik Regülatör (Ofisler için 10 kVA)12x14

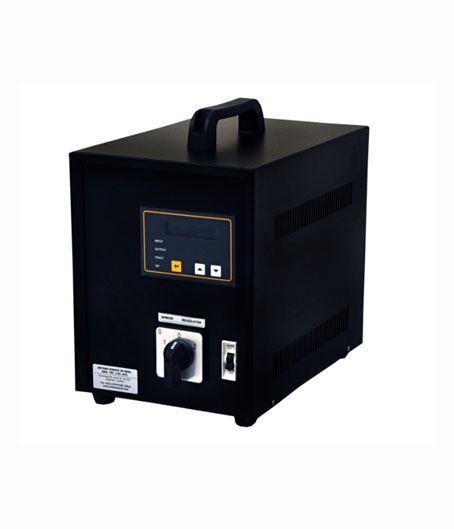

  • Statik Regülatör (Tıbbi cihazlar için 10 kVA)12x14
  • Please click to enlarge single phase static regulator photos.

You may be interested in

Featured products

Repair-Maintenance

General Features

Monophase static regulator general features

  • Fully domestic production
  • Microprocessor controlled
  • Full sine wave output
  • Output voltage sensitivity of 1-3%
  • Correction rate of 000 V / s
  • Small dimensions,
  • Light
  • saving
  • Semikron brand thyristor modules
  • DUCATI brand outlet filter
  • Wide voltage correction field
  • 000 – 22,000 gausse sheet
  • Class H copper or aluminum winding
  • Aluminum or copper Foil wrap
  • Adjustable output voltage
  • Over-heat protection
  • Overcurrent protection
  • Output voltage high protection
  • Output voltage low protection
  • 2×16 LCD
  • Input and output voltage monitoring
  • Tracking fault information
  • Manual Bypass
  • Cooling with fan
  • Quiet operation
  • Carrying handle
  • conditions test
  • Plug-in or terminal connection terminal block
  • IP 20 – IP65 Protection class
  • CE and ISO-9001 certified
  • Special packaging

Technicial Specifications

MODEL ST1-302A
Power (kVA) 3INPUTVoltage 220  VAC, 1 phase + neutral
Input Voltage Range Model A- 165 – 250 VAC – Standard
Model B- 180 – 245 VAC
Model C- 130 – 245 VAC
Model D- 110 – 270 V AC
Model S – Special
Current (A) 13
Frequency 50 Hz ± 10%OUTPUTVoltage 220V AC
Voltage Tolerance 3% Standard (can be changed upon request)
Frequency 50 Hz ± 10%
DISPLAY AND CONTROL PANEL
Type 2 x 16 character backlit alphanumeric LCD display
Panel Touch Buttons
Measurements Input Voltage, Output Voltage
LCD Warnings System Normal, Input Fault, Output High, Output Low, Thyristor Fault, Phase Error
LED Input: Green, Output: Green, Error: Red, Normal: Green
Language Turkish or English
PROTECTION
Output Low Voltage : 180 V High: 240 V
Protection with Overload Fuse
Thyristor Fault The output is automatically cut off. written warning
Excess Heat Output is switched off when module heatsink temperature exceeds 80 ° C
By-Pass Standard Manual (Optional automatic)
Noise Suppression Surge Suppressor, EMI / RFI Filter Options *GENERALYield ≥ 97% (at full load)
THD <0.3% at linear load
Regulation Speed 5,000 V / sec
Noise Vol. <45 dBA, from 1 meter
Output Temperature 0 ° C ~ 40 ° C, maximum 90% (non-condensing)
P.Temperature -20°C ~ +70°C
Protection X type: IP20 (Standard) Y Type: IP23 Z Type: IP54
Device Color: RAL 7035
Cooling Natural Air cooling
Size (WxxH) 240x350x320

General Usage Areas

HomesElectronic test equipmentMotorized machinesTV and video recordersTelephone exchangeMedical DevicesComputersLighting
