Marine Type Transformer (Shore Transformer)

Marin type transformer and technical specifications

Marine type transformer, also known as coastal transformer, which is used in shipyards and ships, must be designed in accordance with heavy usage conditions. Excessive and continuous vibration on ships can cause loosening in transformer mechanics or windings. In addition, salty and humid weather conditions at sea may cause corrosion at windings and electrical connection points.

For this reason, coastal transformer used in ships, berths and shipyards is designed for these harsh conditions.

The windings are completely protected by filling with heat-curing resin impregnated tape winding or by filling with epoxy resin under vacuum.

Copper winding is used in marine type transformer windings. Special type transformers suitable for need are avaible. For example, an automatic selective transformer system has been designed as the supplied energy varies according to the countries where the ports are located. Lighting transformer is produced for ships.

Ship type transformers in accordance with CE and TSE Standards, Lloyd approval certificate is obtained upon request.

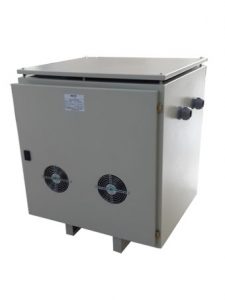

Marin Tip Trafolar

You may be interested in:
Related Products
Featured Products

Coastal Transformer Product Gallery

  • Marin tip trafo fiyatı ve teknik özellikleri hakkında bilgi
  • Click on the photo to enlarge.

General Features

  • Building Isolated
  • 10,000 – 22,000 gausse sheet
  • LIGHTING TRANSFORMER
  • Special slitting sheet,
  • Special production carcass
  • Class H copper or aluminum winding
  • Aluminum or copper Foil wrap
  • Over-heat protection thermostat
  • Uk: 3% – 4%
  • 2% resistance to 200% load
  • Vacuum varnish
  • Drying with oven
  • Input – Output fuse protection
  • Grounding Screen
  • Insulation voltage: 4,000 VAC
  • High efficiency
  • Terminal or lug connection
  • Input-output filter
  • Painted or unpainted solutions
  • Cooling with fan
  • Quiet operation
  • conditions test
  • IP 20 – IP65 Protection class
  • CE and ISO-9001 certified
  • Special packaging

Technicial Specifications

Since Marin Type Transformers are produced specifically for your needs, please contact us for technical details.

General Usage Areas

Hospitals,

Ships,

Automation

Machines

Lighting

Panel

Communication

Lifts and cranes

Sensitive machines with neutral – soil problems
