THREE PHASE SERVO STABILIZER (3 Phase)
Three Phase Servo Stabilizer is mostly used in the industry where three-phase electricity is present. By the help of microprocessor control board, regulation is made by using Motor -Variac- Buffer Transformer.
Depending on the output voltage change, the motor speed used in variac control is changed automatically and high correction speed is obtained. Output voltage tolerance and input correction range can be changed depending on the usage area.
Three-Phase Servo Stabilizer is produced from 3 KVA to 3,000 KVA. Extra safe operation with optional protection unit and outlet filter.
It has excellent performance under heavy working conditions.
Variacs are wrapped with H class enameled copper wires. Varnished in vacuum boiler and dried in 180 C oven.
Automatic Servo Stabilizer Buster Transformers
Buster transformers that are used inThree-phase servo regulators are produced as copper winding and aluminum winding. It is important to note that while the servo regulator buster transformers can be aluminum winding, the variacs must necessarily be copper. Therefore, when copper winding regulators are taken, the buster transformer windings should be copper, not variac windings.
Three-phase automatic servo regulator is wound appropriate CE quality norms and our company has ISO-9001 quality certificate.

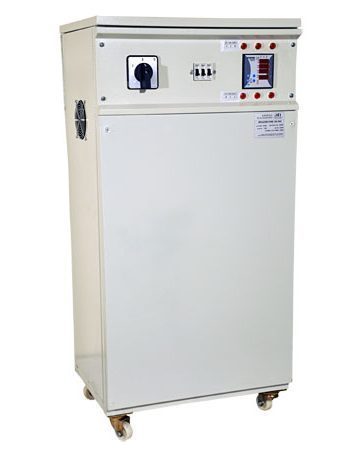

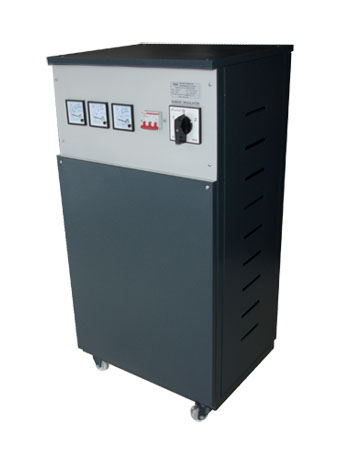

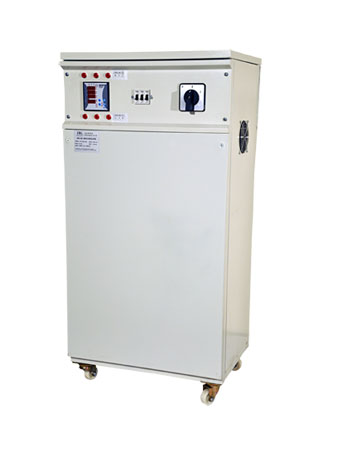

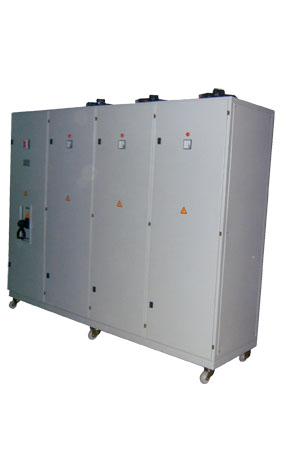

Three Phase Servo Voltage Stabilizer Product Gallery
- Three-phase automatic servo regulator click for larger photos.
- Three Phase Servo Regulators
- Microprocessor controlled
- 12,000 – 22,000 gausse sheet metal
- Intelligent motor speed control
- 150 V / sec correction rate
- Optional current protection unit
- Phase protection unit
- 2×16 line LCD display option
- Protection option with break switch
- Copper or aluminum winding
- Optional power analyzer
- Insulation voltage: 4,000 VAC
- Yield 96%
- Output sensitivity: 2%
- CosQ> = 0.8
- Fan cooling
- Terminal or lug connection
- Digital Voltmeter
- Manual By-pass Switch
- Optional automatic by-pass option
- Optional wide range of correction options
- Three-phase and single-phase options
- Structure with toroidal variant
- End-of-limit protection switches
- Wheeled
- Quiet operation
SERVO REGULATOR TECHNICAL SPECIFICATIONS |
|||||||||||||||||
| MODEL | SW3-103 | SW3-153 | SW3-223 | SW3-303 | SW3-453 | SW3-603 | SW3-753 | SW3-104 | SW3-124 | SW3-154 | |||||||
| Power (kVA) | 10,5 | 15 | 22,5 | 30 | 45 | 60 | 75 | 100 | 120 | 150 | |||||||
| INPUT | |||||||||||||||||
| Voltage | 3 x 380 VAC, 3 Phase + Neutral | ||||||||||||||||
| Input Range | A- 275 – 450 VAC – Standart | ||||||||||||||||
| B- 310 – 425 VAC C- 220 – 400 VAC D- 310 – 470 V AC E – Special | |||||||||||||||||
| CosQ | 0,8 | ||||||||||||||||
| Frequency | 50 Hz ±%10 | ||||||||||||||||
| OUTPUT | |||||||||||||||||
| Voltage | 3 x 380 VAC, 3 Phase + Neutral | ||||||||||||||||
| I.Tolerance | 2.5% Standard (can be changed upon request) | ||||||||||||||||
| Over Current Capacity | 10% to 150% load, 10 sec to 200% load. | ||||||||||||||||
| Frequency | 50 Hz ±%10 | ||||||||||||||||
| INDICATOR | |||||||||||||||||
| Type | 3pcs 72×72 Digital Voltmeter (for R, S, T phases) | ||||||||||||||||
| Measurment | Output Voltage | ||||||||||||||||
| PROTECTION | |||||||||||||||||
| Output Voltage | Low: 180 V High: 240 V | ||||||||||||||||
| Earth Leak | Optional | ||||||||||||||||
| Overload | Fuse protection – (Electronic current protection – optional) | ||||||||||||||||
| Over Heat | Variac and transformer temperature control | ||||||||||||||||
| By-Pass | Standard Manual (Optional automatic) | ||||||||||||||||
| Noise Filtering | Surge Suppressor, EMI / RFI Filter Options * | ||||||||||||||||
| GENERAL | |||||||||||||||||
| Efficiency | ≥ %97 (Full load) | ||||||||||||||||
| Reg. Speed | 80 V/s | ||||||||||||||||
| Noise Lev. | <45 dBA, from 1 meter | ||||||||||||||||
| O.Temperature | 0 ° C ~ 40 ° C, maximum 90% (non-condensing) | ||||||||||||||||
| P.Temperature | -20°C ~ +70°C | ||||||||||||||||
| Protection | X type: IP20 (Standard) Y Type: IP23 Z Type: IP54 | ||||||||||||||||
| Device Color | RAL 7035 | ||||||||||||||||
| Cooling | Natural Air cooling (Fan forced cooling optional) | ||||||||||||||||
| Sizes (WxDxH) | 50x40x100 cm | 60x40x120 cm | 85x60x135 cm | 100x70x150 cm | |||||||||||||
| Weight | 100 kg | 160 kg | 200 kg | 260 kg | 380 kg | 410 kg | 510 kg | 545 kg | 675 kg | ||||||||
Homes
GENERAL USAGE AREAS
Gas stations
Electronic test equipment
CNC machines
TV and video recorders
Telephone exchange
Medical Devices
Computers
Lighting
Electronic Test Equipment
Motorized machines
Marine Equipment
Telecommunication Devices
Fire and Security Systems
hospitals
shipyards
Textile Machinery
Welding Machines
Radio & TV Stations
