MONOFAZE (1 FAZ) REDRESÖR / AKÜ ŞARJ REDRESÖRÜ

12V-15A Single Phase rectifier
12V-15A Single Phase rectifier

Single Phase Rectifier/Battery charger; it is generally used for battery charging in small businesses. It is small in size and light in weight and can be easily transported. It is suitable to work under very heavy conditions and the risk of failure is close to zero with its isolated transformer and thyristor structure.

Battery charger/Rectifier, easy to use with its 1.5 m long input cable and 2 m long output clamp cables. It does not require maintenance. It has ability to charge dry type battery, aqueous type battery, gel battery, Ni-cd etc all kinds of battery.

Single-phase battery charger has over-current, over-voltage and over-temperature protections.

Led or LCD models are available to monitor input voltage, output voltage, output current, error information, operating status information.

The charge chart of the battery charger varies according to each battery type. IU0U charging characteristics and other charging characteristics can be selected. It has the possibility of charging by selecting the battery from the LCD panel.

It is easy to carry with carrying handle. The warranty period is 3 years. Extreme heat, current, low voltage and high voltage protections are available.

It has the ability to charge traction battery, forklift battery and other battery types. Click here for detailed information about industrial battery chargers.

Information about the battery charger rectifier models are as below and please contact us for detailed information.

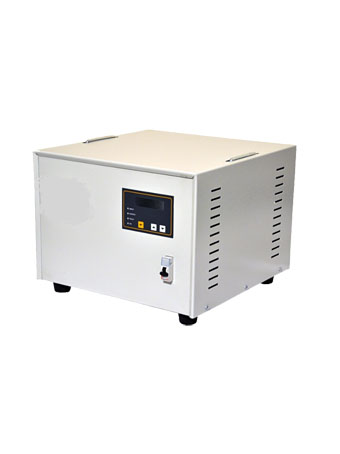

Monophase rectifiers product gallery

  • Click on the photo to enlarge the battery charger.

Battery Charger General Features
Small size
Input Isolation Transformer
L-C Filter
Microprocessor controlled
Thyristor-thyristor Module Structure
Soft start opening
Led or 2X16 Row LCD
Battery charging or feeding
12V / 24V / 48V / options
Production in the range of 10A – 100 ADC.
Choice of automatic or manual charging modes
Charge tracking

PROTECTION

Over Current
Short circuit
Extreme Heat
Transformer extreme heat
DC high
DC Low
Network high
Entry insurance

INDICATORS

2×16 Row LCD display
Input voltage, output voltage, output current, error information tracking
Show language selection (English, Turkish)
Led status notification

LINKS

Cable with plug
DC output tong cable

ARTSAN Battery Charger Technical Specifications
Input
Input Voltage 220 V or 3×380 V AC
Input Frequency 50 Hz
Input Current .
Input Tolerance -%20, +%15
Efficiency > % 80
Power factor 0.8 <
Output
Output Voltage 12 V / 24 V / 48 V / 96 V / 110 V DC Options
Output Current 15 A / 30 A / 50 A / 80 A / 100 A / 200 A/ 500 A Options
Dynamic Answer 0 to 100% Max. Voltage change <5%
Soft Start 10 Sn.
Kontrol Tipi PWM Controlled Thyristor – Diode Module group
Trigger Frequency 3 kHz
Filter L-C Filter
Ripple 3%
Indicators
LCD 2x 16 LCD display with working status monitoring
Buttons Menu monitoring with the help of buttons
Battery Charge Level Leds ( %25, %50, %75, %100)*
Warning Leds Input present, Output present, Over current, Over heat, Battery low, Voltage high
Protections
DC high, DC low (battery low.), Over heat, over current, short circuit, fuses, Earth leakage relay *
GENEL
On – Off Pako Switch
Montage Type Floor mount, Wall mount, Mobile *
Warning Contacts Optionally
Recovery Diod Standart
Link Terminals
Protection class IP20
Operating temperature 0 C ve 40 C , maksimum % 90 (condensing)
Noise level  < 45 DBA
Cooling Fan veya Cebri
Device color RAL7035

Emergency lighting units

General Usage Areas

Telephone exchange

Control Devices

Alarm Systems

Battery charge

Electronic Test Equipment

Radio & TV Stations

Marine Equipment

Fire and Security Systems

Galvanized coating applications
